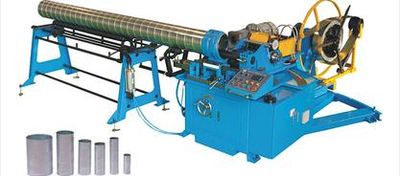

The Spiral Former SF-1250 is our most popular model. This machine uses the same heavy duty cast forming heads as our larger  machine. The slitter cutoff system produces clean end cuts.


Specifications:


Maximum diameter: 1250mm/48"

Minimum diameter: 100mm/4"


Maximum thickness capacity:

Galvanized mild steel: 1.2mm/0.045"

Stainless steel: 0.6mm/0.023"


Material strip width: 137mm/5.39"

Uncoiler type: Vertical single reed


Maximum speed: 40m / 130ft per minute

Cutoff type: Slitter

Motor size: 8 kw

Electrics: Choose 50 hz or 60 hz

The SF-2000S Super model has a gear motor drive and uncoiler with drag brake mounted on a common machinery base. Coil entry angle adjustment is motorized. The SF-2000S model includes PLC control. Part Length and batch quantity are set at the PLC control. The SF-2000 machine includes hydraulic forming head clamping for fast diameter change.


Specifications:


Maximum material thickness:
Galvanized mild steel: 1.2mm / 0.042"

Stainless steel: 0.8mm / 0.030"


Minimum material thickness for:
Galvanized mild steel: 0.5mm / 0.020"

Stainless steel: 0.5mm / 0.020"

Other materials: Copper / Aluminum


Material strip width: 137mm / 5.39"


Uncoiler type: 80 meters per minute


Maximum speed: 80m / 270 ft. per minute


Motor size: 20 kw


Electrics: Choose 50 Hz or 60 Hz

Video

SF-1250

SF-2000S
